Brand Name : LNF-BRC Wire Fence
Model Number : Top And Bottom Bended
Certification : ISO
Place of Origin : American ,Australia ,Canadan
MOQ : 500 liner meter
Price : 16.68$ per liner meter
Payment Terms : TT30% deposit balance 70% at sight of finished products
Supply Ability : 10000 liner meters
Delivery Time : 7 work days
Packaging Details : All metal Pallets
Materials : Q235 steel
Color : Any Ral Color
Treatment : Hot Dipped Glavanized,Powder Coated
Mesh Opening : 50mm x 50mm ,55mm x 55mm ,75mm x 75mm ,50mm x 100mm
Diameter : 4.00mm ,5.00mm ,6.00mm
Type : Weld
Warranty : 5 -25 years depand on the treatment
Main Market : Europea ,Middle East ,USA ,AU etc
Accessoires : Clamp and Post Caps etc
Customized : Available
Feature : Top And Bottom Circled Design
Application : Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence, 868 Fence
Trade Mark : N/M
Sample : Free but pay freight cost
Top Type : Round Circle
Nickname : Double Loop,Double Circled ,Double Ring ,Wire Fence
Mesh size:
50×100 mm, 50×150 mm, 50×200 mm, 75x100mm,100×100 mm, 100×200 mm ,etc.
Standard fence specification:
Mesh | Wire diameter | Surface Treatment | Panel Width | Folds NOS. | Height | Post height |
50x200mm, 50x150mm 50x100mm 55x200mm | 3.0mm,4.0mm 4.5mm, 5.0mm | Galvanized and | 2.50m | 2 | 630mm | 1200mm |
2 | 830mm | 1400mm | ||||
2 | 1030mm | 1500mm | ||||
2 | 1230mm | 1800mm | ||||
2 | 1430mm | 2000mm | ||||
2 | 1630mm | 2200mm |
Mesh | Wire diameter | Surface Treatment | Panel Width | Folds NOS. | Height | Post height |
50x200mm, 50x150mm 50x100mm 55x200mm | 3.0mm,4.0mm 4.5mm,5.0mm | Galvanized and Electrostaticpolyester coated or PVC coated | 2.50m | 4 | 1400mm | 2000mm |
4 | 1600mm | 2200mm | ||||
4 | 1800mm | 2400mm | ||||
4 | 2000mm | 2600mm | ||||
4 | 2200mm | 2800mm | ||||
4 | 2400mm | 3000mm |
Fence post:
1) SHS post: 50x50mm,60x60mm,
2) RHS post: 60x40mm,80x40mm,
3) Round post: 48mm,60mm,75mm.
4) Peach post:50x70mm,60x90mm,70x100mm
Fence finish
Hot dipped galvanized
Galvanized and polyester powder spraying coated
Galvanized and powder dipped coated
Standard colours: RAL 6005 green, 9005 black,5010 blue, 3000 red, 9010 white
Other colours: All other RAL colours available.
Fence application:
Fencings for factories, warehouses, buildings and public utility facilities, such as schools, sports fields and sports stadiums, playgrounds, as well as private premises.
Fence packing:
1) pallet
2) bulk in the container.
![]() |

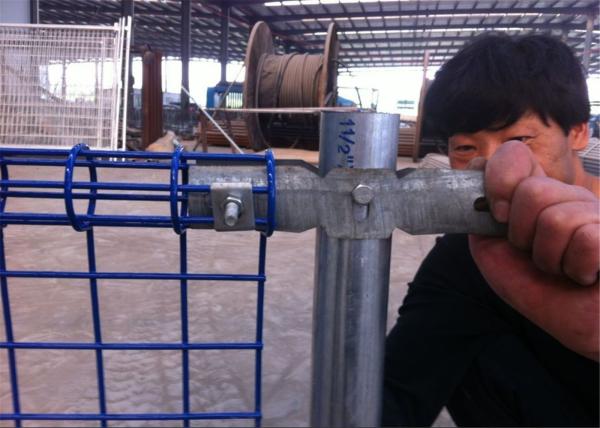

Low price ornamental double loop wire fence Images |
