Brand Name : LNF ROPE WIRE MESH
Model Number : Stainless Steel
Certification : ISO
Place of Origin : China
MOQ : 50M2
Price : 16.78$/M2
Payment Terms : Western Union, T/T, MoneyGram
Supply Ability : 10000M2/per Week
Delivery Time : 7 work days
Packaging Details : Metal Pallet
Material : Stainless Steel Wire,316,316L stainless steel,304L,Galvanized Steel Wire
Application : Protecting Mesh,Filters,Screen,Woven Wire Mesh,decorative cable mesh
Type : Rope Mesh,Weave Wire Mesh,Reinforced Mesh,knotted mesh and ferrule mesh,stainless steel decorative wire mesh
Weave style : Plain Weave,Dutch Weave,Twill,handmade,Dutch-Twill Weave
Technique : Woven,Welded Mesh,Weave
Feature : Corrosion Resistance,Flexible,durable,high-strength,Rust-Resistance
Wire diameter : Requirement,0.019mm to 2.32mm,0.02mm-0.5mm,1x7 7x7 7x19 or customized
Usage : filter,Protection,decorative wire mesh,aviary mesh
Hole shape : Diamond,Square Hole,Rectangular,as per requirement,round hole
Color : Silver,requirement,gold,blue or as your request,Red/yellow/green/blue;customized
Product name : SS 304 decorative wire mesh,smoking pipe filters,X-tend Kontted Type Stainless Steel Inox Cable Wire Rope Mesh,304 316 316L stainless steel bird cage wire rope/aviary mesh,Stainless Steel Wire Rope Net/Stainless Steel Cable Mesh for Bird
Width : 0.1m-8m,2-4m,Cunstomized,0.914m~1.83m,1.5m
Length : 30m,2-4m,30m per roll or as required,30m/roll 50m/roll
Surface treatment : Hot Dipped Galvanized,black/ pre-gal/hot dip gal,Mill.Coloer Finish
Sample : Available,Free
Mesh size : 8-500 mesh,20mm-160mm,as your requirement
Size : 3"*3",4"*4",1"*1",1.5"*1.5",Customized
Advantage : Superior wire,no noise,corrosion resistance,High strength,Wear-resisting
Aperture : 25-100mm,75-2800 Micron,1" 2"x2" 3"x3" 4 or customized
Black Oxide Mesh Specification :
Black Oxide Mesh | |||||
Model | Wire Diameter | Mesh Opening | Normal Break | ||
inch | mm | inch | mm | 1bs. | |
Stainless Steel Rope Wire Mesh-1220 | 3/64 | 1.2 | 4/5 x 4/5 | 20 x 20 | 270 |
Stainless Steel Rope Wire Mesh-1225 | 3/64 | 1.2 | 1x1 | 25.4 x 25.4 | 270 |
Stainless Steel Rope Wire Mesh-1230 | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
Stainless Steel Rope Wire Mesh-1238 | 3/64 | 1.2 | 3/2 x 3/2 | 38 x 38 | 270 |
Stainless Steel Rope Wire Mesh-1625 | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
Stainless Steel Rope Wire Mesh-1630 | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
Stainless Steel Rope Wire Mesh-1638 | 1/16 | 1.6 | 3/2 x 3/2 | 38 x 38 | 480 |
Stainless Steel Rope Wire Mesh-1650 | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
Stainless Steel Rope Wire Mesh-1676 | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
Stainless Steel Rope Wire Mesh-2038 | 5/64 | 2.0 | 3/2 x 3/2 | 38 x 38 | 676 |
Stainless Steel Rope Wire Mesh-2050 | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
Stainless Steel Rope Wire Mesh-2060 | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
Stainless Steel Rope Wire Mesh-2076 | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
Stainless Steel Rope Wire Mesh-2450 | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
Stainless Steel Rope Wire Mesh-2460 | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
Stainless Steel Rope Wire Mesh-2476 | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
Stainless Steel Rope Wire Mesh-2490 | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
Stainless Steel Rope Wire Mesh-2410 | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
Stainless Steel Rope Wire Mesh-3250 | 1/8 | 3.2 | 2 x 2 | 51 x 51 | 1600 |
Stainless Steel Rope Wire Mesh-3276 | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1600 |
Stainless Steel Rope Wire Mesh-3290 | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1600 |
Stainless Steel Rope Wire Mesh-3210 | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1600 |
Stainless Steel Rope Wire Mesh-3212 | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1600 |
Black Oxide Wire Rope Mesh Details
Mesh Type | Ferruled or Knotted |
Mesh Angle | 60 degree in rhombus shape |
Mesh Orientation | Horizontal or Vertical |
Panle Measurement | Custom-made in width and lenght |
Finished | Black Oxide |
Application | Balustrade , Facade Cladding , Animal Enclosure , Aviary Netting |
Wire rope black oxide mesh is manufactured from high-grade stainless steel cables of material class 1.4401, AISI316 / AISI316L ;
Stainless steel wire rope mesh is custom manufactured to suit your balustrade, railing or architecture application ;
Finished diamond mesh style when it is stretched at 60 degree angle ;
Mesh can be applied in either a vertical or horizontal direction, again dependent on the design ;
Mesh sizes range from 20mm to 120mm or bigger with stainless cable diameters from 1.2mm to 4.0 mm.
Applications
Stainless steel black oxide wire rope mesh is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.
![]() |

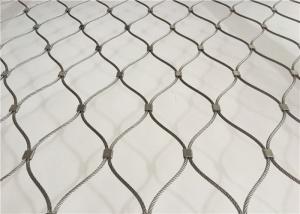

Stainless Steel Black Oxide Mesh Images |
