Brand Name : LNF ROPE WIRE MESH
Model Number : Stainless Steel
Certification : ISO
Place of Origin : China
MOQ : 50M2
Price : 16.78$/M2
Payment Terms : Western Union, T/T, MoneyGram
Supply Ability : 10000M2/per Week
Delivery Time : 7 work days
Packaging Details : Metal Pallet
Material : Stainless Steel Wire,316,316L stainless steel,304L,Galvanized Steel Wire
Application : Protecting Mesh,Filters,Screen,Woven Wire Mesh,decorative cable mesh
Type : Rope Mesh,Weave Wire Mesh,Reinforced Mesh,knotted mesh and ferrule mesh,stainless steel decorative wire mesh
Weave style : Plain Weave,Dutch Weave,Twill,handmade,Dutch-Twill Weave
Technique : Woven,Welded Mesh,Weave
Feature : Corrosion Resistance,Flexible,durable,high-strength,Rust-Resistance
Wire diameter : Requirement,0.019mm to 2.32mm,0.02mm-0.5mm,1x7 7x7 7x19 or customized
Usage : filter,Protection,decorative wire mesh,aviary mesh
Hole shape : Diamond,Square Hole,Rectangular,as per requirement,round hole
Color : Silver,requirement,gold,blue or as your request,Red/yellow/green/blue;customized
Product name : SS 304 decorative wire mesh,smoking pipe filters,X-tend Kontted Type Stainless Steel Inox Cable Wire Rope Mesh,304 316 316L stainless steel bird cage wire rope/aviary mesh,Stainless Steel Wire Rope Net/Stainless Steel Cable Mesh for Bird
Width : 0.1m-8m,2-4m,Cunstomized,0.914m~1.83m,1.5m
Length : 30m,2-4m,30m per roll or as required,30m/roll 50m/roll
Surface treatment : Hot Dipped Galvanized,black/ pre-gal/hot dip gal,Mill.Coloer Finish
Sample : Available,Free
Mesh size : 8-500 mesh,20mm-160mm,as your requirement
Size : 3"*3",4"*4",1"*1",1.5"*1.5",Customized
Advantage : Superior wire,no noise,corrosion resistance,High strength,Wear-resisting
Aperture : 25-100mm,75-2800 Micron,1" 2"x2" 3"x3" 4 or customized
Architectural Cable Rope Mesh Specifications :
304 Architectural Cable Rope Mesh | |||||
Cable Construction | Cable Diameter | Mesh Hole Size(W x H) | Breaking Strength | ||
inch | mm | inch | mm | KN | |
7x19 | 1/8 | 3.2 | 4.75'' x 4.75'' | 120x120 | 7.38 |
7x19 | 1/8 | 3.2 | 4'' x 4'' | 102x102 | 7.38 |
7x19 | 1/8 | 3.2 | 3.6'' x 3.6'' | 90x90 | 7.38 |
7x19 | 1/8 | 3.2 | 3'' x 3'' | 76x76 | 7.38 |
7x19 | 1/8 | 3.2 | 2'' x 2'' | 51x51 | 7.38 |
7x7 | 3/32 | 2.4 | 4'' x 4'' | 102x102 | 4.18 |
7x7 | 3/32 | 2.4 | 3.6'' x 3.6'' | 90x90 | 4.18 |
7x7 | 3/32 | 2.4 | 3'' x 3'' | 76x76 | 4.18 |
7x7 | 3/32 | 2.4 | 2.4'' x 2.4'' | 60x60 | 4.18 |
7x7 | 3/32 | 2.4 | 2'' x 2'' | 51x51 | 4.18 |
7x7 | 5/64 | 2.0 | 3'' x 3'' | 76x76 | 3.17 |
7x7 | 5/64 | 2.0 | 2.4'' x 2.4'' | 60x60 | 3.17 |
7x7 | 5/64 | 2.0 | 2'' x 2'' | 51x51 | 3.17 |
7x7 | 5/64 | 2.0 | 1-1/2'' x 1-1/2'' | 38x38 | 3.17 |
7x7 | 1/16 | 1.6 | 3'' x 3'' | 76x76 | 2.17 |
7x7 | 1/16 | 1.6 | 2'' x 2'' | 51x51 | 2.17 |
7x7 | 1/16 | 1.6 | 1-1/2'' x 1-1/2'' | 38x38 | 2.17 |
7x7 | 1/16 | 1.6 | 1.2'' x 1.2'' | 30x30 | 2.17 |
7x7 | 1/16 | 1.6 | 1'' x 1'' | 25.4x254 | 2.17 |
7x7 | 3/64 | 1.2 | 1-1/2'' x 1-1/2'' | 38x38 | 1.22 |
7x7 | 3/64 | 1.2 | 1.2'' x 1.2'' | 30x30 | 1.22 |
7x7 | 3/64 | 1.2 | 1'' x 1'' | 25.4x25.4 | 1.22 |
7x7 | 3/64 | 1.2 | 4/5'' x 4/5'' | 20x20 | 1.22 |
Architectural Cable Rope Mesh Description :
Product Name | ss 304 Architectural Cable Rope Mesh |
Wire Diameter | 2.0mm |
Cable Construction | 7x7 ,7x19 |
Width and Length | Customized , we can do as your requirement |
Mesh Type | Ferrule Rope Mesh |
![]() |

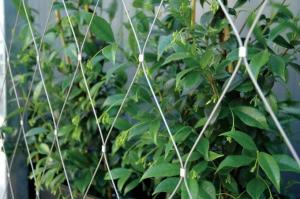

Wire Mesh Rope Netting Images |
