Brand Name : LNF-3d fence panels
Model Number : 1030mm/1530mm/1830mm/2030mm/2230mm height
Certification : ISO
Place of Origin : American Design China Made
MOQ : 500 liner meter
Price : 4.00$/liner meter
Payment Terms : TT30% deposit balance 70% at sight of finished products
Supply Ability : 10000 liner meters
Delivery Time : 7 work days
Packaging Details : All metal Pallets
Color : RAL 6005 ,9003 ,2008 and so on
Feature : Anti Cut ,Anti Climb
Mesh Opening : 50mmx200mm
Treatment : Hot Dipepd Galvaized ,Powder Coated ,Painted
Service Life : 5years -25 years depand on treatment
Materials : High Tensile Wire ,Q235 Wire etc
Main Market : Africa ,Oceania ,Aisa
Sample : Free But Pay Freight Cost
Material: Low carbon steel wire and other materials
2.Process: Made through weaving, punching and welding.
3.Application: Fencing and protection for the road, railway, airport, residence district, seaport, garden, feeding and husbandry
4.Product Features: Corrosion resistant, age resistant, sunshine proof, weatherproof.
5.Corrosion Form: Electric galvanized, Hot-dipped galvanized after welded, Powder coated, PVC coated
Specification | |||||||
Wire Dia. | Mesh size | Panel width | Panel height | Fold no. | Post height | Post model | |
Fix 1 | Fix 2 | ||||||
4.0mm 4.5mm 5.0mm 5.5mm 6.0mm |
200*50mm 200*55mm 200*60mm 200*65mm |
2.0m 2.255m 2.5m 3.0m | 830mm | 2 | 1200mm | 900mm |
Square post Peach post Round post Holland post |
1030mm | 2 | 1400mm | 1200mm | ||||
1230mm | 2 | 1600mm | 1400mm | ||||
1530mm | 3 | 2000mm | 1700mm | ||||
1730mm | 3 | 2200mm | 1900mm | ||||
1830mm | 4 | 2300mm | 2000mm | ||||
2030mm | 4 | 2500mm | 2200mm | ||||
2230mm | 4 | 2700mm | 2400mm | ||||
2530mm | 5 | 3000mm | 2600mm |
![]() |

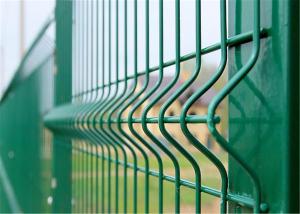

Manufacture PVC Coated Military Anti-Climb 1830mm x 2500mm 4 v fold 100mm section mesh fence Images |
