Brand Name : LNF-Steel Grating
Model Number : Hot Dipped Galvanized Steel Grating
Certification : ISO
Place of Origin : China
MOQ : 100pcs
Price : 6.66$/SQM
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 10000 sqm per week
Delivery Time : 8 work days
Packaging Details : Pallet
Material : Steel,Q235,A569,SS316,A1011
Surface treatment : Hot Dipped Galvanized,Untreated,painting,painted,Galvanized
Application : Floor,steel structure,Industrial platform,trench,bridge
Product name : Steel grating,hot dip galvanized anti slip bar steel grating weight,Steel grid,Galvanized expanded metal lowes weight per square meter steel grating,Metal Building Materials Hot Dipped 32 x 5mm Galvanized Steel Grating
Color : Silver,Customers Samples Color,Matt White. silvery,black,White
Type : Plain Bar Grating,Press welded stee grating,I bar type etc.,Serrated Bar Grating,plain
Length : max 6000mm,Customized-Made,0.8m,CUSTOMERIZED,2m
Standard : YB/T4001,Customized-Made,A569,ISO9001,Q235
Width : 600-1250mm,995mm,0.3m,1.5m
Cross bar pitch : 50,76,100,101.6,38
Thickness : 5mm,3mm-12mm,3mm/5mm,3-10mm,0.12 ----1.50mm
Bearing bar pitch : 30mm,25,30,15,etc.
Height : 25~40mm,12.5CM,2.5mm
Usage : Public Drain Area,Kitchen,stairs/platform/drainage,Deck Floor Tree Catwalk Driveway,Garage
Name : Steel grating,Steel Floor Decking,metal building materials hot dipped galvanized steel grating
Grating specification : 40/50,30/100,19-w-4,15-w-2,60/100 and all
Grating size : 3'x20',1000x1000mm,3x30',1000x6000mm and all,ect
Shape : Square
Technique : Welded
Round Steel Welded Bar Grating For Industrial Catwalk Grating , 16 - w - 4
Parameter
1. Bearing bar | 25x4,25x5,,30x3,30x5,32x4.5,50x5,.....75x10mm US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc. |
2. Bear Bars pitch (mm) | 20, 24, 25, 30, 30.16, 30, 35, 40,60mm. |
3. Cross bar pitch | 30,38,50,76,100,101.6mm |
4. Material | Q235,SS304 |
5. Surface treatment | Untreatment, hot-dipped galvanising, painted |
Introduction of hot dip galvanized steel grating
1>Material:carbon steel or stainless steel
2>Cross bar pitches:maybe 24-200mm,of which 50mm,76mm and 100mm are recommended.
3>Steel grating is made by the world first-class equipment,which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance.cross bar is pressed into the bearing bar by high tension resistance weldingring which is controlled by computer.so we can produce high quality gratings with firm welding,smooth surface and high strength.
4>Surface process of steel grating:Types:hot-dipped galvanized,electro-galvanized ,spraying brushing. 95% people choose hot-galvanized because its anti-acid and alkali corrosion capacity range is from PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.
5>Attractive appearance:Simple outline.silver colour and modern.
6>Optimum water draining:Water leakage area reaches 83.3%,which is more than two times larger than that of cast iron.
7>Hot-dip galvanizing:Good antirust performance,maintenance free and replacement free.
8>Design of preventing theft:The cover is connected with the frame by gemel,which ensures protection against theft,safety and convenient opening.
![]() |

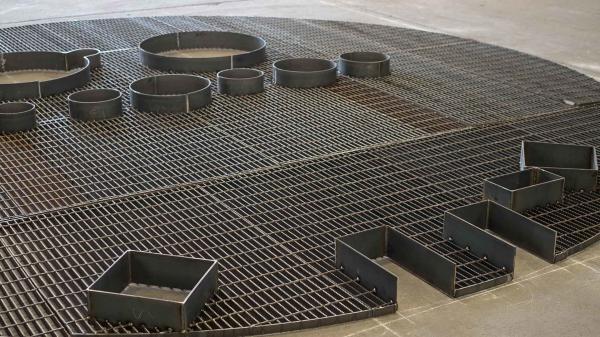

hot dip galvanized steel grating Images |
